Description

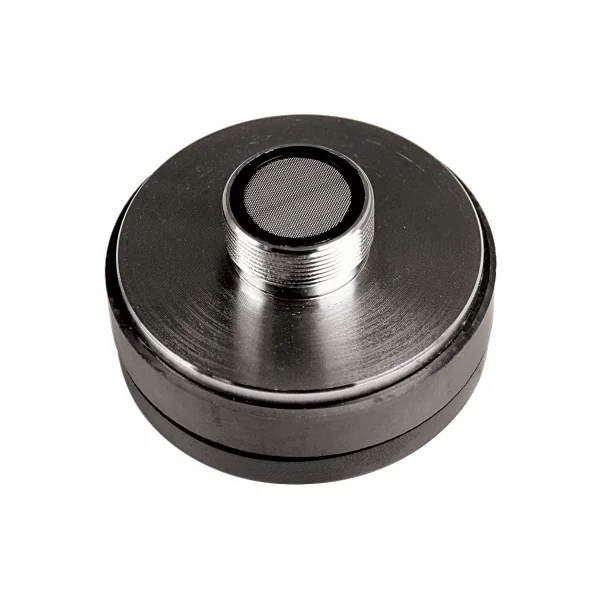

ASD:1001 HF Driversmpm
SPECIFICATION
Throat Size 1″, 25.4 mm
Nominal Impedance 8 ohms
Power Rating 50W (EIA426B Secification, 1.6 kHz 18 dB)
Resonance 1.23 kHz
Usable Frequency Range 2.5 kHz – 20 kHz
Recommended Crossover 2.5 kHz / 18 dB
Sensitivity 105 dB
Magnet Weight 12 oz., 0.34 kg
Voice Coil Diameter 1.3″, 33 mm
Re 6.7
Le 1.1 mH
MOUNTING Information
Overall Diameter 3.5″, 88.9 mm
Mounting Holes Diameter N/A
Mounting Holes B.C.D. N/A
Mounting Thread 1 3/8″ 18 NEF ext.
Depth 2.45″, 62 mm
| type HP | moteur |
| Taille HP | — |
| puissance | 50W |
| Impédance | 8ohms |
| taille moteur | 1p |
| Diametre | 90mm |
| Hauteur | 66mm |
| Poids | 985g |
| Marque | EMINENCE |
